Super MINI ELM327 บลูทูธ V2.1 OBD2 รถยนต์ไร้สายเครื่องอ่านโค้ด OBD เป็นสากล II เครื่องมือสแกนอัตโนมัติทำงาน Android รุ่น: ELM327 V2.1 ข้อมูลจำเพาะ: a-L02BJ-L

Description:
Function: Read diagnostic trouble codes(over 3000 generic code definitions in the database); Clear trouble codes and turn off the MIL (\"Check Engine\" light); Display current sensor data.
Display current sensor data, including: Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance,Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,
Oxygen sensor voltages/associated short term fuel trims,Fuel System status,Fuel Pressure etc.
OBD-II Protocols Support:
SAE J1850 PWMSAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO14230-4 KWP
ISO14230-4 KWP
ISO15765-4 CAN
ISO15765-4 CAN
ISO15765-4 CAN
ISO15765-4 CAN
Specification:

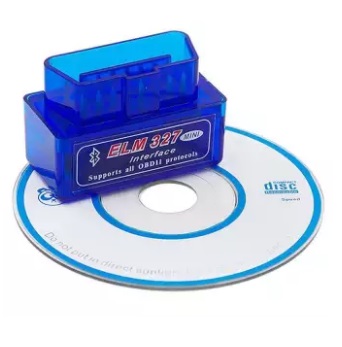

Item type: ELM327 Bluetooth OBD2 Car Diagnostic Scanner
Item size: 4.7x2.5x3cm
Gross weight: 70g
Color: Blue
Model: Super Mini
Processor: ELM327 V2.1
Hardware Version: ELM327
Software Version: OBD2 ELM 327
Special Features: Bluetooth
Operation System Support: For Android Smartphones, for Symbian, for Microsoft (mobile phone, tablet), most computer system (except for iOS system), and all these device must have Bluetooth function.
Protocol Support: It supports almost OBD-II protocols.
Working Voltage: 12V
Working Current: 45mA
Material: Plastic
Package included:
1x ELM327 Bluetooth OBD2 Car Diagnostic Scanner
1x CD-ROM
Please contact us first when you have any problem,we will give you the best service and solve the problem ASAP.Thank you so much.
