เครื่องมือโปรแกรมกุญแจ และ Renew กล่องควบคุบอื่นๆ VVDI MB BGA TooL Key Programmer Auto Diagnostic tool with BGA Calculator Function for Benz support All

·         Power:8

·         Item Length:34cm

·         Hardware Version:VVDI MB BGA TOOL

·         Item Height:9cm

·         External Testing Certification:CE

·         Electronic:No

·         Software Version:VVDI MB BGA TOOL

·         Item Width:28cm

·         Material Type:Best Quality

·         Item Type:Auto Key Programmer

·         Voltage:12

·         Model Name:SK185

·         Item Weight:1.57kg

·         Special Features:with BGA Calculator Function

·         Condition:New

·         Batteries:NO

·         Warranty:12 months

·         Performance:Excellent

·         Shipping:Fast and Safe

·         Update:Timely

·         Processing Time:1-4 Working Days

·         Included Components:VVDI MB BGA TOOL

·         Support:for Benz key programming

Product Description

เครื่องมือโปรแกรมกุญแจ และ Renew กล่องควบคุบอื่นๆ
Original Xhorse V4.1.0 VVDI MB BGA TooL for Benz Key Programmer Including BGA Calculator Function Support All Key Lost

Latest Version:V4.1.0

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function will be released soon.

9. Renew other control modules function will support soon

Notice:

1. If you have bought Condor key cutting machine (click here), you can buy SK185-B (click here) at 1400usd Only.

2. Support   Password Calculator Function   . It takes 4 minutes to collect data, and 2 minutes to calculate. Check MB BGA Tool Token Service

3. Support All Key Lost:   W204, W207,W166, W246, W212, W212(old), W216, W164 2009-, W210 (newly add) and some others

4.  If you buy CONDOR XC-002, your VVDI MB can has 1 free token everyday.  If you have both condor XC-MINI and XC002, your VVDI MB can has 2 free tokens per day

5. In the future, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).

VVDI MB BGA Tool Function in Details:

1. Read Write Key

1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4.  NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)

2. EIS Tools

1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-

3. Password Calculation: support working key and lost all key

1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-

4. Prepare Key File

1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump

5. ESL Tools

1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator

6. Renew ECU/Gearbox

1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc

More detail infomotion click Xhorse VVDI MB Tool User Manual

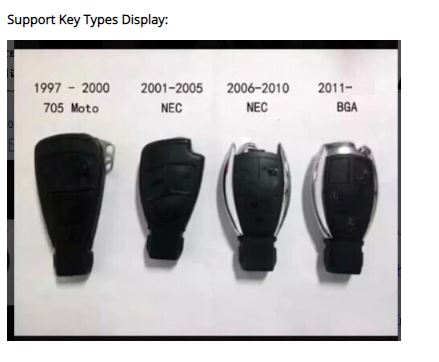

Support Key Types Display:

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906

Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61

This two adapters are not in the parcel. If you need them, please click here to buy.
Two adapters: one for versions 28, 35, 40, 51, 57, another one for version 59.

VVDI for Benz BGA Tool Customer Feedback:

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months..

FAQ:

Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?

A:Read eis via obd for W164, W169, W211, W209, require gateway connected

Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?

Describe step by step procedure

A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost

1.read all key lost EIS data-> save EIS data

2.read used EIS data enter password,get erase password->renew used EIS.

3.load step1 EIS data to renewed EIS with password->write EIS data

4.load EIS data(with key password)->prepare key file

5.input new key to device IR reader->load key file->write

6.insert new key to EIS->EIS will learn the new key->key learn success

by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).

then load eeprom to VVDI MB TOOL prepare key file.

Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me what to do?

A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:

1.Read EIS data via obd,then Save EIS data

2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL

3.Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data

4.Personalize W204 ESL

5.Load EIS data(with Key Password)->Prepare Key File

6.Input new Key to device IR reader->Load Key file->write

7.Insert new Key to EIS->EIS will learn the new key->key learn success

VVDI MB BGA TOOL Update Informations:

VVDI MB TOOL latest software version V4.0.0 update

2018-03-14 Require firmware V4.0.0
For BENZ V4.0.0
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix

​ VVDI MB TOOL latest software version V3.8.0 update 2018-02-26

Require firmware V3.6.0

For BENZ V3.8.0

1. Support spanish language

2. Support load For Motorola EEPROM dump in EIS window and display key information

3. Bugfix for read KM in some W207 EIS

4. Bugfix for old motorola keys show incorrect key password

5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)

6. Bugfix

This version No need to update firmware

​ VVDI MB TOOL latest software version V3.7.0 update

2018-01-10

Require firmware V3.6.0
=== For BENZ V3.7.0 =====
1. Bugfix for some countries can't synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix

VVDI MB TOOL latest software version V3.6.0 update-2017-12-23

*** Require firmware V3.6.0

===== For BENZ V3.6.0 =====

1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation

2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit

3. Improve the success rate of BAG key password, erase password and enable key password

1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)

2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation

3) The server have 99% success rate for erase password and enable key password now

4) Add some old version NEC key for password calculation

5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password

4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS

5. Support activate W906(NEC) ELV from OBDII

6. Bugfix

VVDI MB TOOL latest software version V3.5.0 update

VVDI MB TOOL latest software version V3.0.0 update

VVDI MB Tool V3.0.0 Update Feature:


2017-05-02Require firmware V3.0.0

===== For BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old for Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix

2017-01-07    Require firmware V2.1.7

===== For BENZ V2.1.7   =====

1. Attention: All user update device to firmware v2.1.7, software v2.1.7

2. User manual v1.7 released, overview v1.7 released

3. BGA password calculation: bugfix for lost all key W216, W164 2009-

4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)

5. Activate key: Change key status from unuse to used

6. Bugfix for read v57 version password from key with NEC key adaptor

7. Bugfix

2016-12-23
Require firmware V2.1.5

===== For BENZ V2.1.5 =====
1. Attention: All user update device to firmware v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key(0CF4)
4. Bugfix for data acquisition in some old key version
5. Language bugfix

VVDI MB Tool Update to V2.14

2016-09-12
Require firmware V2.1.4

=====    For BENZ V2.1.4            =====
1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key

VVDI MB Tool Update to V2.13

2016-09-06
Require firmware V2.1.2

=====    For BENZ V2.1.3            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.3
2. Fix bug for time out when get erase password or key file

2016-09-02
Require firmware V2.1.2

=====    For BENZ V2.1.2            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released
3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental)ISM read/write/erase
9. Bugfix

 2016-06-28
Require firmware V2.1.1

=====    For BENZ V2.1.1            =====
1. Attention: All user update device to firmware v2.1.1, software v2.1.1
2. Add connection diagram for new NEC key adaptor
3. Support repair W204 ESL fatal error and repair old motorola ELV. you need buy an extra adaptor for ESL
4. Bugfix

2016-05-31
Require firmware V2.0.9

=====    For BENZ V2.1.0            =====
1. Fixbug for write original NEC key via IR
2. Fixbug for show finish error information in IR read password

2016-05-29
Require firmware V2.0.9

=====    For BENZ V2.0.9            =====
1. Attention: All user update device to firmware v2.0.9, software v2.0.9
2. User manual v1.5 released, overview v1.5 released
3. Support new sprinter W906 for motorola EEPROM dump prepare key file
4. Support read password via IR for old for motorola EIS (HC05, HC08, K-Line)
5. Support W204 ESL Emulator: only support VVDI W204 emulator, you must renew it before use
6. Support OBD read W164, W211, W209, W169 EIS without gateway, you need buy an extra adaptor
7. Fixbug for make only 1 key file in motorola EEPROM dump
8. Fixbug for read v51 version password from key
9. After read password from v51, v57 key, will fix the key automatically
10. Bugfix

VVDI MB TOOL Latest Version V2.0.7 Update(2016-02-26)


Require firmware V2.0.7
===== for BENZ V2.0.7   =====
1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version dont support password calculation
2. User manual v1.2 released, overview v1.3 released
3. Add support for renew ECU/Gearbox/ISM etc
4. Fix diable key in K-Line protocol
5. Fix clear TP in K-Line protocol
6. Fix read key bug in password calculation
7. Bugfix

SK185 VVDI - MB TOOL V2.0.5 Update

1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation

2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times

3. Password calculation with working key support: add working key test before data acquisition

4. Add EIS status test, working key test function

5. Fix bug for OBD read W203, W639, W463(K) EIS

6. Autodetect W212 EIS with ELV

7. Fix bug for read v51 key password via NEC adaptor

8. Add IR repair key function

9. Bugfix

Package List:


1. VVDI-MB TOOL device

2. IR adaptor

3. USB cable

4. NEC adaptor 1

5. NEC adaptor 2

6. NEC adaptor base PCB

7. K Line in OBD line

8. OBD line

​
