2017 Newest G-M MDI Auto Scanner MDI WIFI Multiple Interface Mdi Opel Obd2 obd 2 Scanner Without Software Car Diagnostic-Tool

G-M MDI wi-fi OBD2 Scanner Features:

1.With o-pel Global tis global diagnostic system;

2.Support offline lease function;

3.Support O-pel offline programming function;

4.With GDS2 diagnostic system;

5.Tech2win diagnostic software support adding latest software;

6.support programming online;

7.support cable communication;

8.support wireless communication;

9.support original factory latest software;

10.With European C-hevrolet Global tis, Supports European C-hevrolet offline programming;

11.All Chip are new and original.

G-eneral M-otors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI.

MDI opel wifi adapter and GDS Background:

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.

Can be Used for SPS programming on existing and future SG-M vehicles.

Required for diagnostics on new SG-M Global A Electrical Architecture Vehicles.

Used with TIS2Web, G-M Global Diagnostics System (GDS), SPS and MDI Manager Software Allows for GDS diagnostic.

G-M Multiple Diagnostic Interface (MDI).

All current and most legacy vehicle protocols:UART, KW2000,CLASS2,G-M LAN,etc.

Needed for Global A architechture vehicles.

Supports Service Programming System (SPS).

Pass through progrmming on past model and Global A vehicles.

Supports PC-Based diagnostics with rollout of the Global Diagnostic System (GDS) application Includes Flight Recorder Mode.

New Diagnostic Application Software required for Global A Vehicles.

Global Diagnostic System (GDS).

PC-based software diagnsotics.

DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.

GDS is software which runs on a specific PC. Updates received via TIS2Web.

Multiple display options. More space for diagnsotics. Session management for multiple us.

Mdi Future of the Tech 2

The Tech 2 remains an essential tool through at least the 2010 model year. The G-M MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

MDI wifi obd2 car diagnostic-tool HOW WILL THE MDI BE USED?

The new G-M MDI can be used only in the Pass-Thru method.This means you can use it as your programming tool, while your Tech 2 CANDY remains available for diagnostics and other duties.

What protocols does the G-M MDI support?

For immediate use — At present, vehicles have two buses on the 16 pin connector (high speed and low speed G-MLAN). The G-M MDI communicates using all of the existing G-M protocols, the same as the Tech 2:

1.UART

2.Class 2

3.KWP2000

4.G-M MDI Wifi LAN (CAN)(Without Software)

MDI Obdii scan tool Package List:

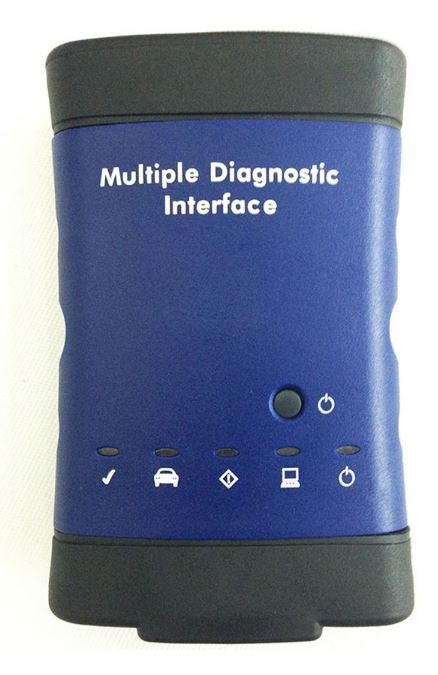

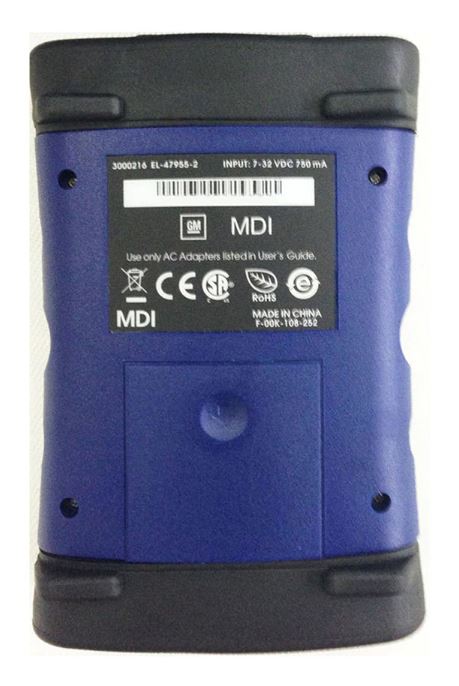

1 x MDI main unit without software.
1 x Main cable
1 x USB cable
